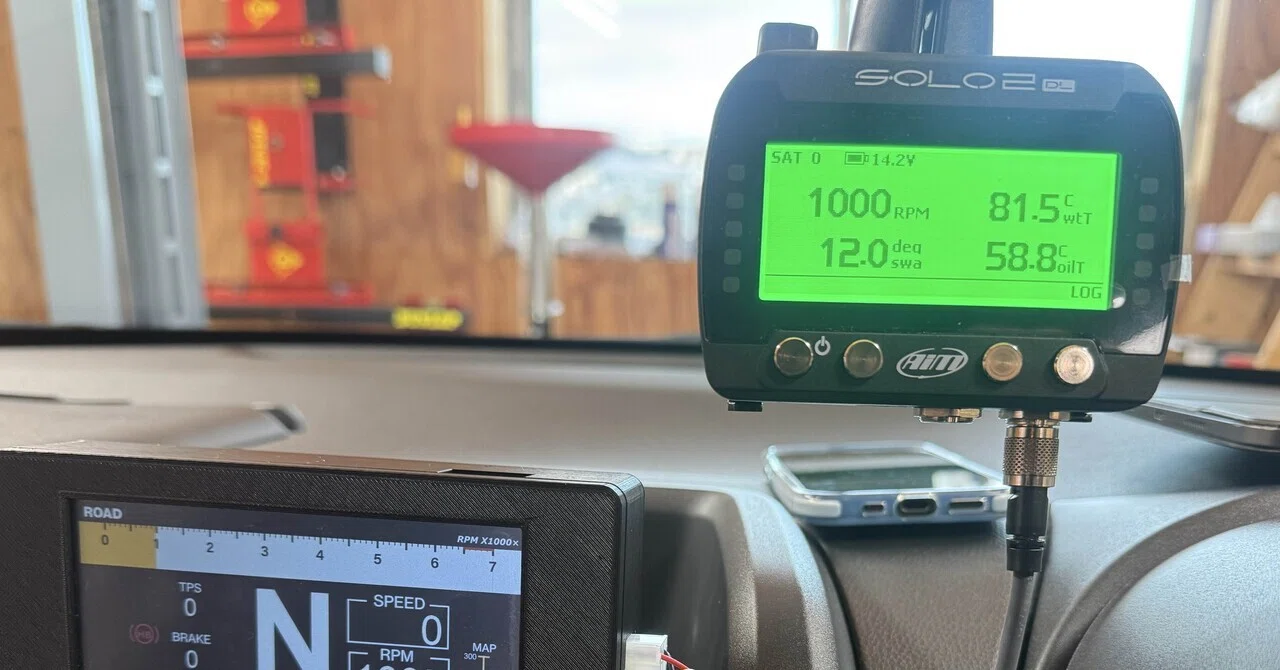

GR Yaris CAN Bus Reverse Engineering

[Max2]

Hmm. Looking at this today and my wiring looks slightly different to yours (I've got a RHD car). Either that or I'm looking at it and can't see it!?

View attachment 35761

View attachment 35762

View attachment 35763

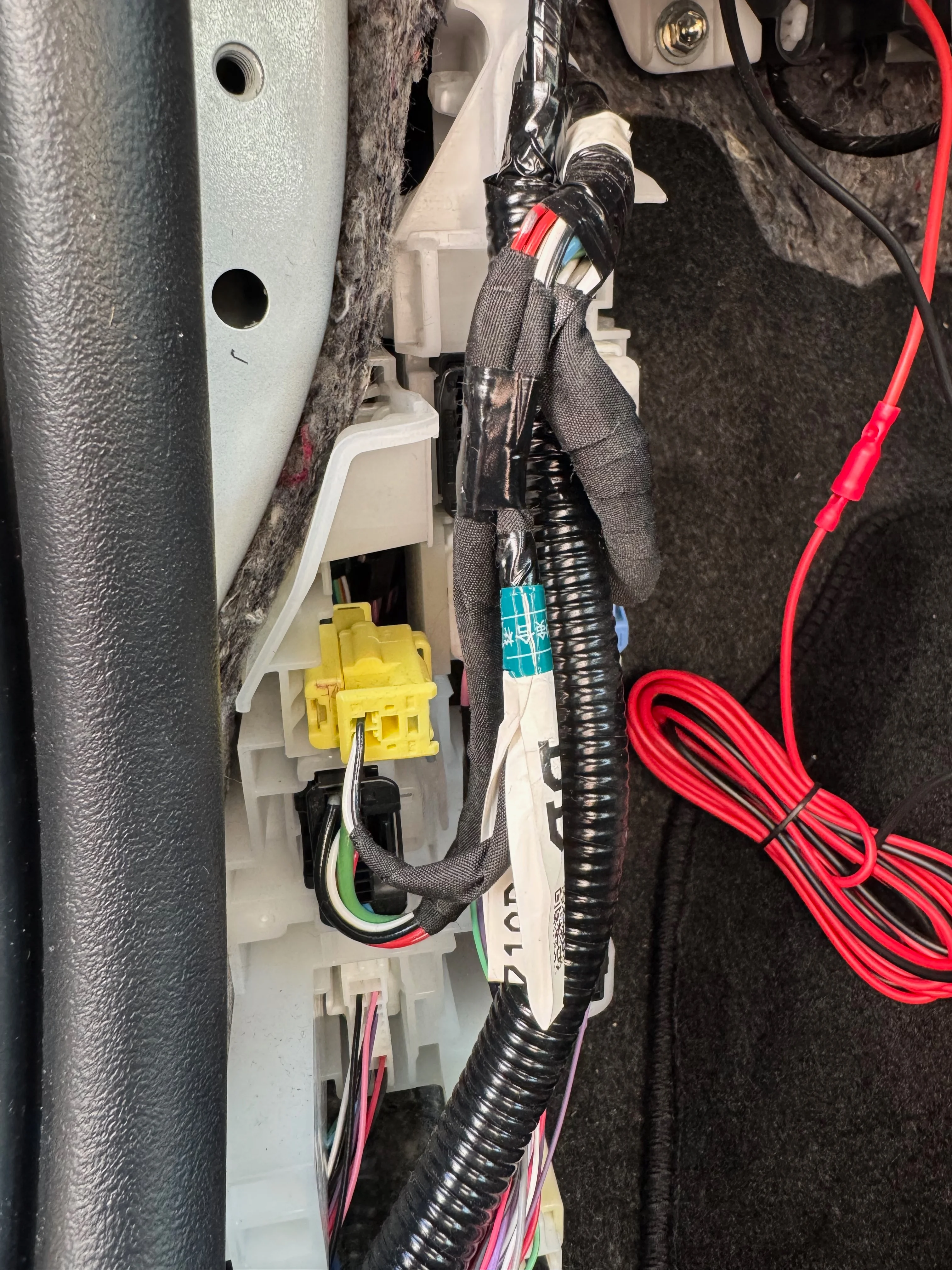

Hi, did you have any luck locating the CAN bus connector on your rhd gr, I am having the same issue locating it. Thanks



[mag]

Hi, did you have any luck locating the CAN bus connector on your rhd gr, I am having the same issue locating it. Thanks

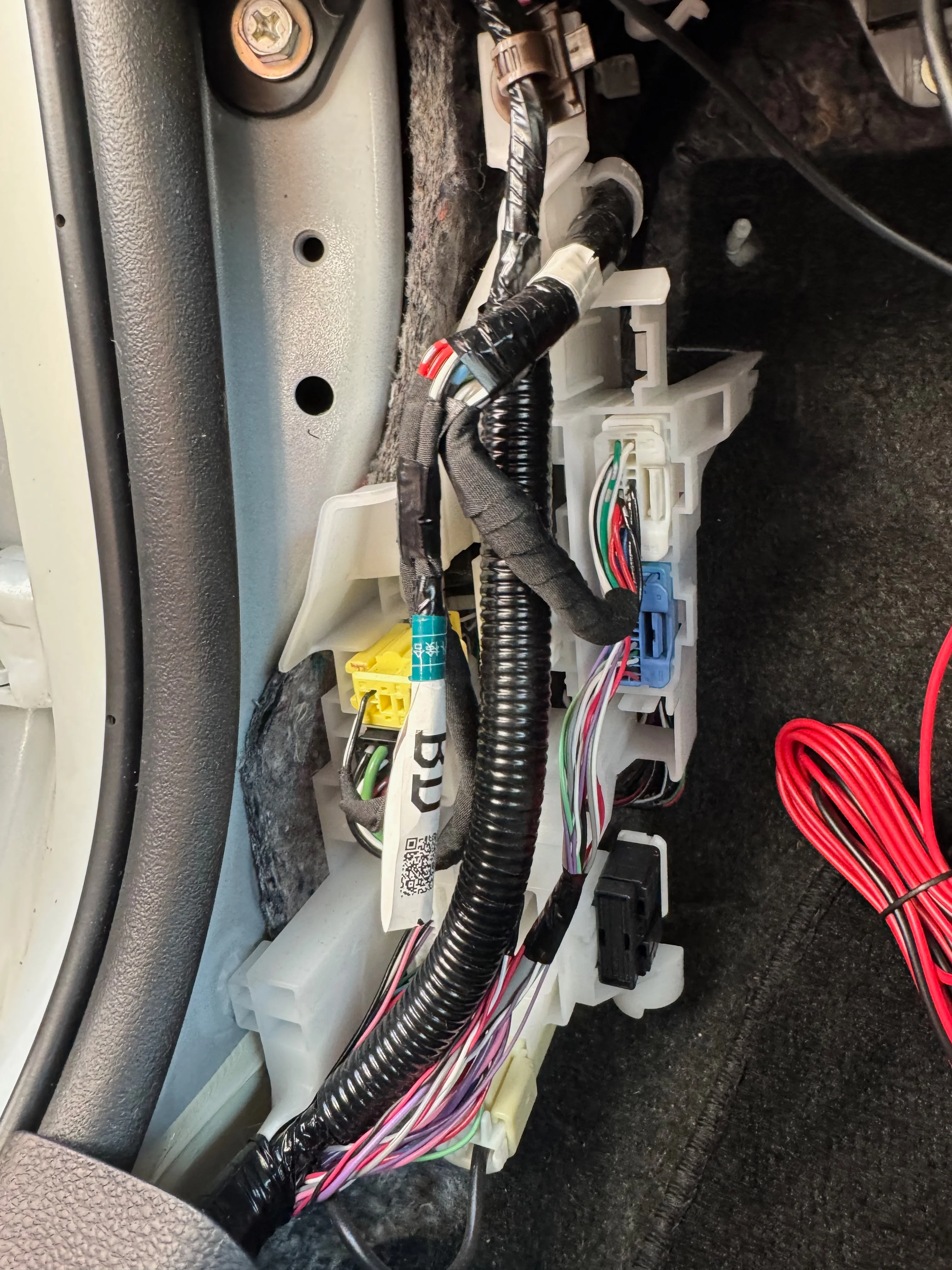

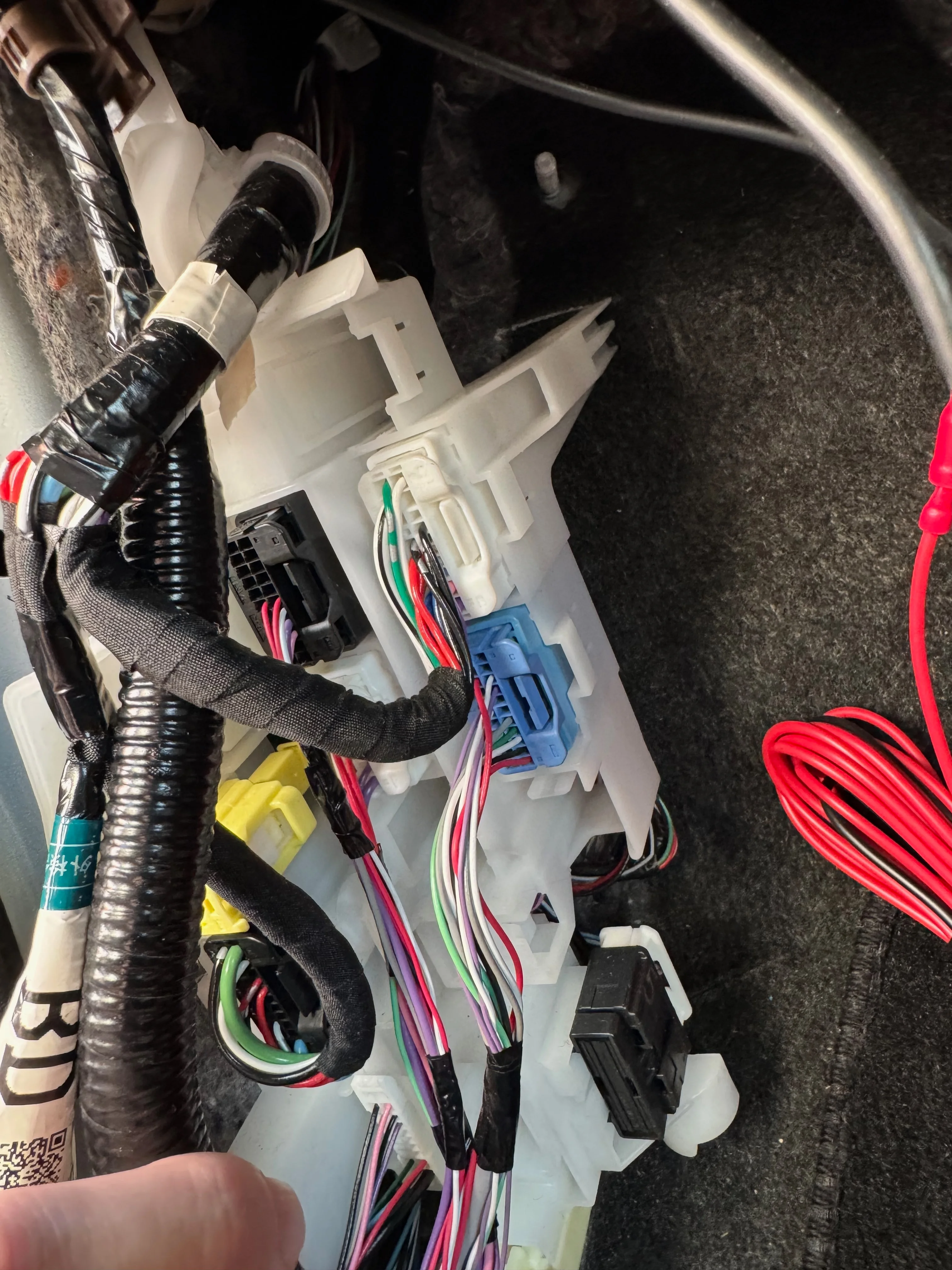

A little further up from the foot well, behind the glove box on the left. It's taped to the instrument panel harness near the fuse box. You'll have to crane your neck slightly to see it
