GR Yaris CAN Bus Reverse Engineering

geraldjust said:

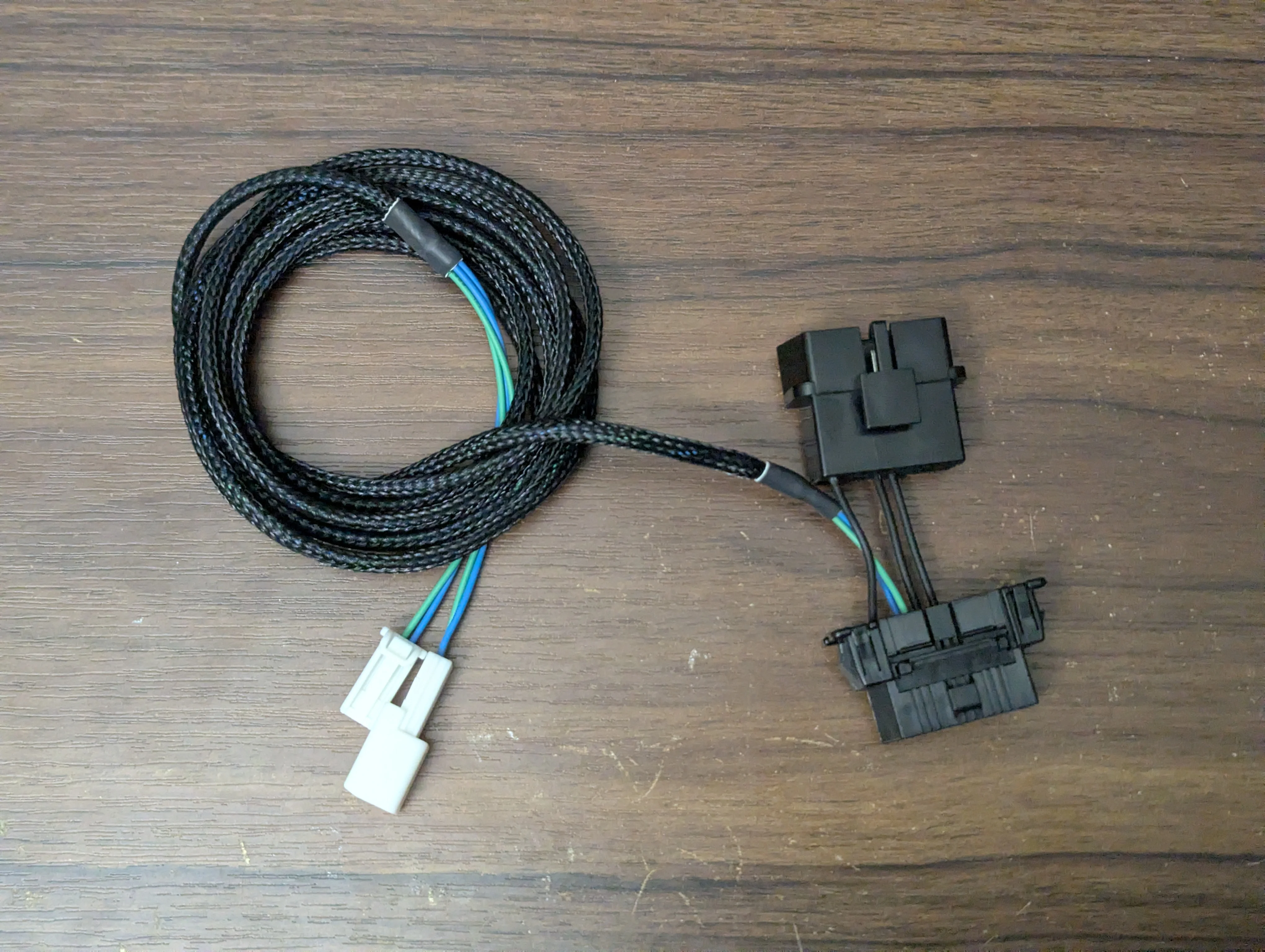

hey guys! im making a logging cable, but need some people to verify the fitment. the cable will connect to the options connector. and its has both the male and female side so it will work for both GRC and GRY. and the cable uses the factory obd2 port to get the power and ground pins for the AIM to also charge while logging.

besides that i set up my AIM profile, i reversed engineered myself most of the values the ecu outputs. so all of the temp stuff, so have the oil temp. oil pressure, i also verified the brake pressure by logging via techstream to verify my units. so my values are tested on a grc. so not sure if they will match a GRY.

anyways if anyone wants to test my cable let me know. GRY that are RHD would be nice as well

View attachment 38957
Click to expand...
Hi Geraldjust,

I have a RHD GRY and would like to test your cable.

Cheers

So I’ve got a load of data from my logging set up, and with just installing the new Corolla, high throttle cold air box it would be intresting to see what actually it effects.

bahamutkotd said:
So I’ve got a load of data from my logging set up, and with just installing the new Corolla, high throttle cold air box it would be intresting to see what actually it effects.
Click to expand...
Hi Bahamutkotd, How did you managed to obtain the data? Via CAN? Do you mind to share more in details?

Trackaholic.Diary said:
Hi Bahamutkotd, How did you managed to obtain the data? Via CAN? Do you mind to share more in details?
Click to expand...
I captured the data from the optional can, and not the obd2 can because I’m doing passive capture without doing obd2 requests.

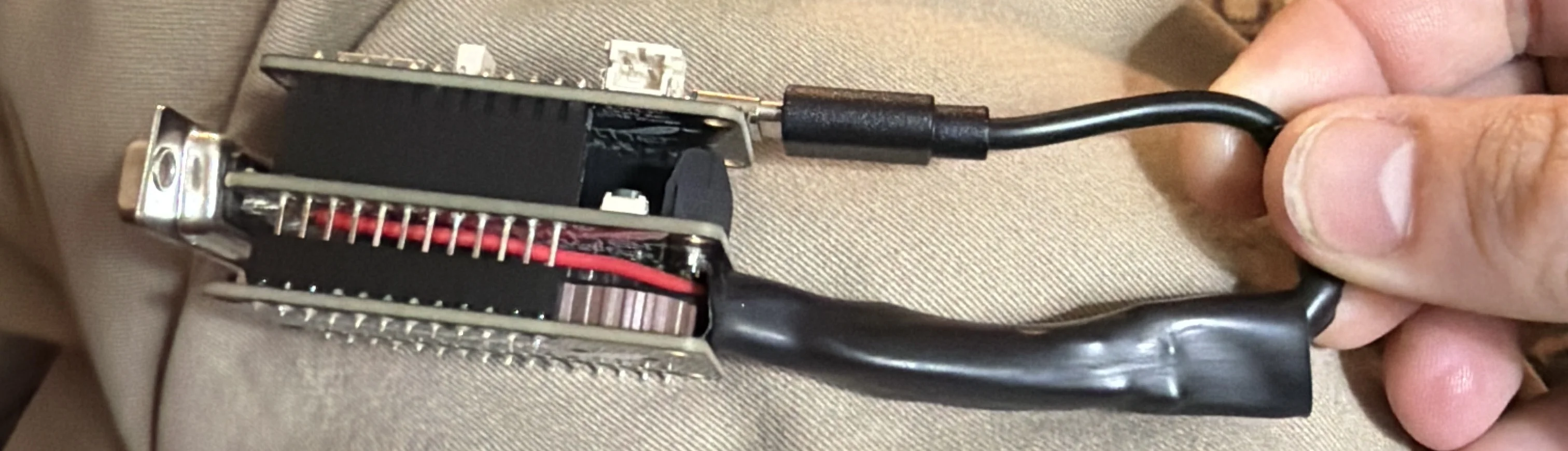

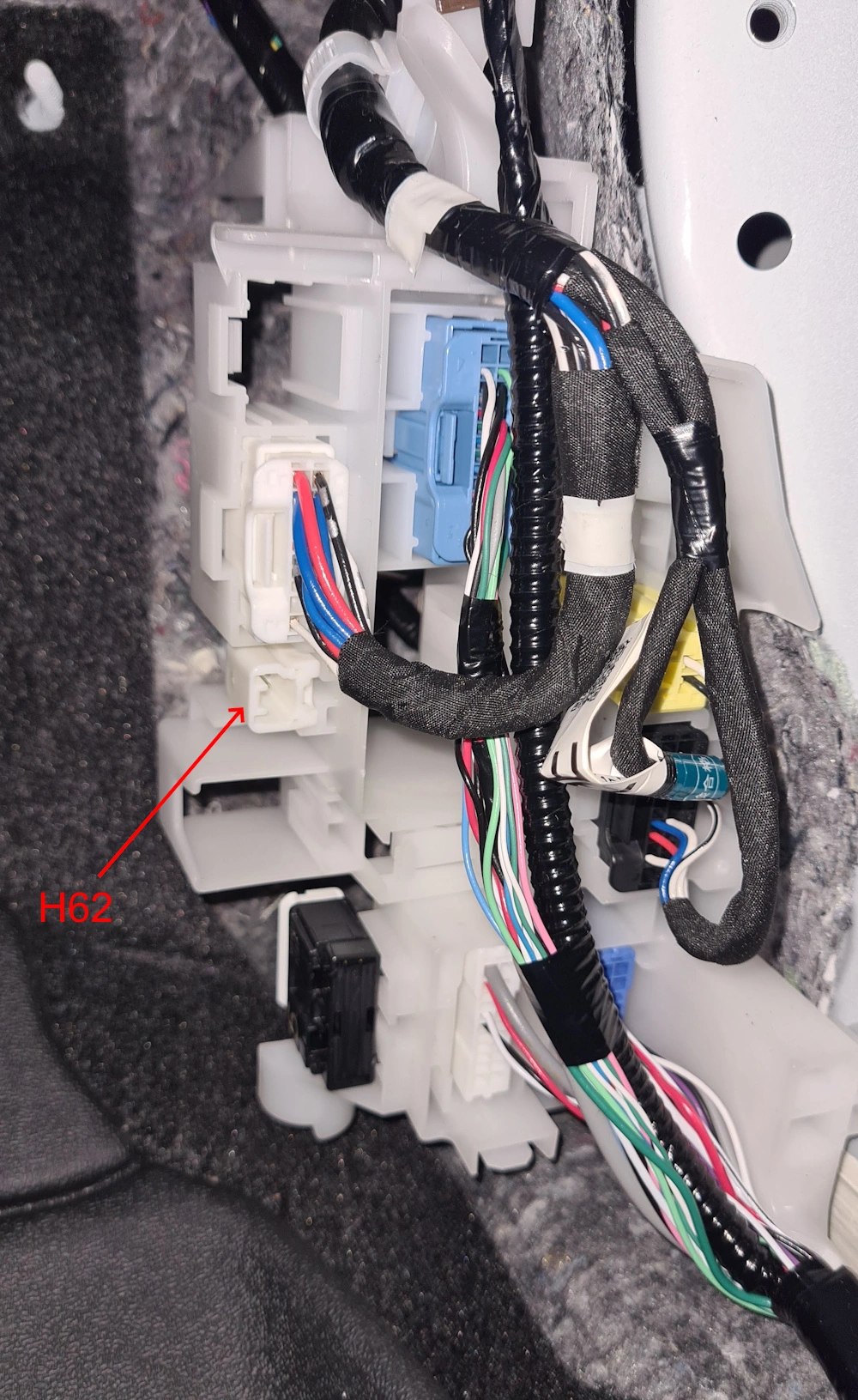

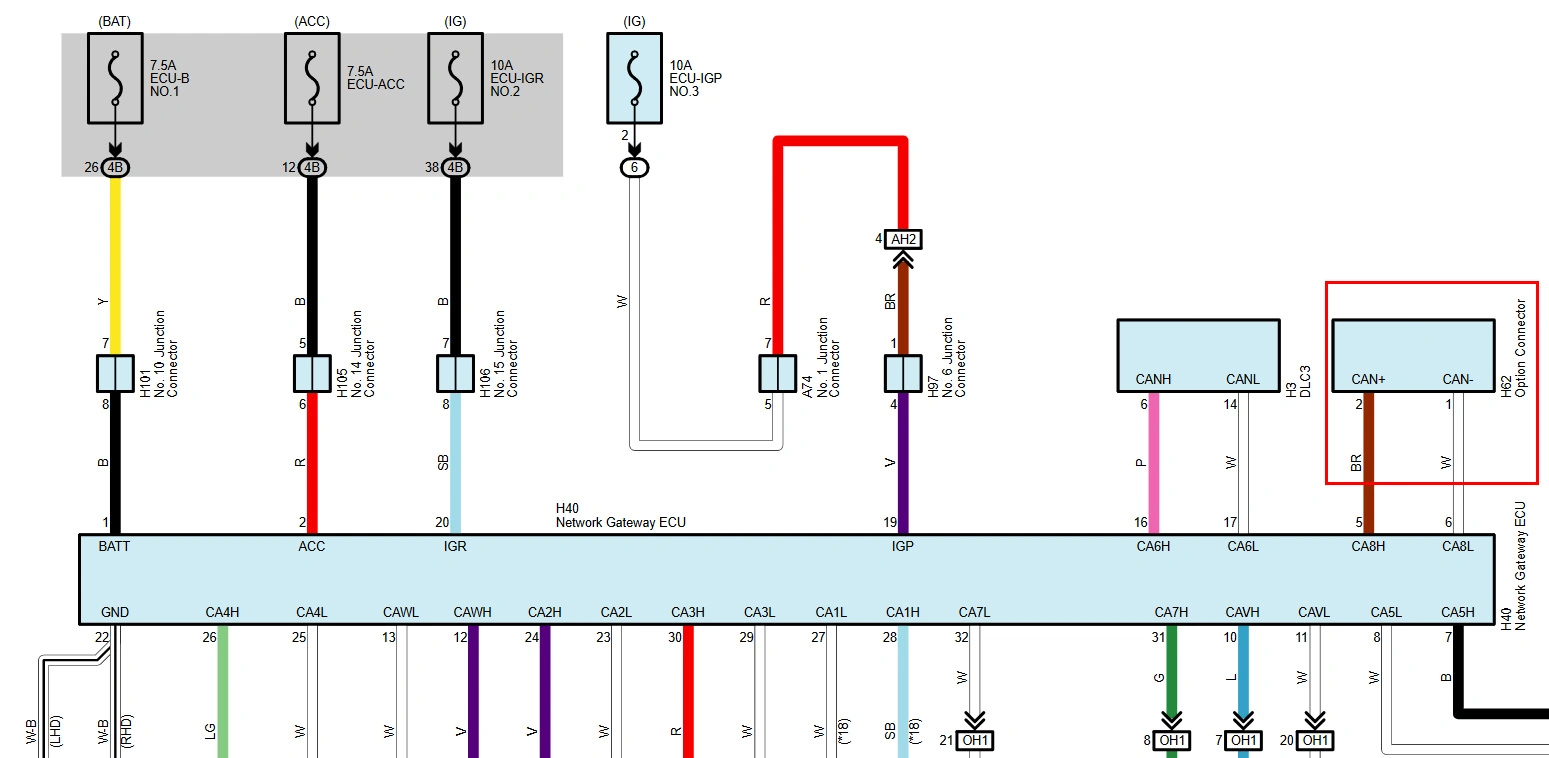

Like posted earlier in the thread, both the gr yaris and the gr Corolla have an optional can in the passenger kick panel. Using either I174, or H62. I’m using a esp32 board to capture the can frames.

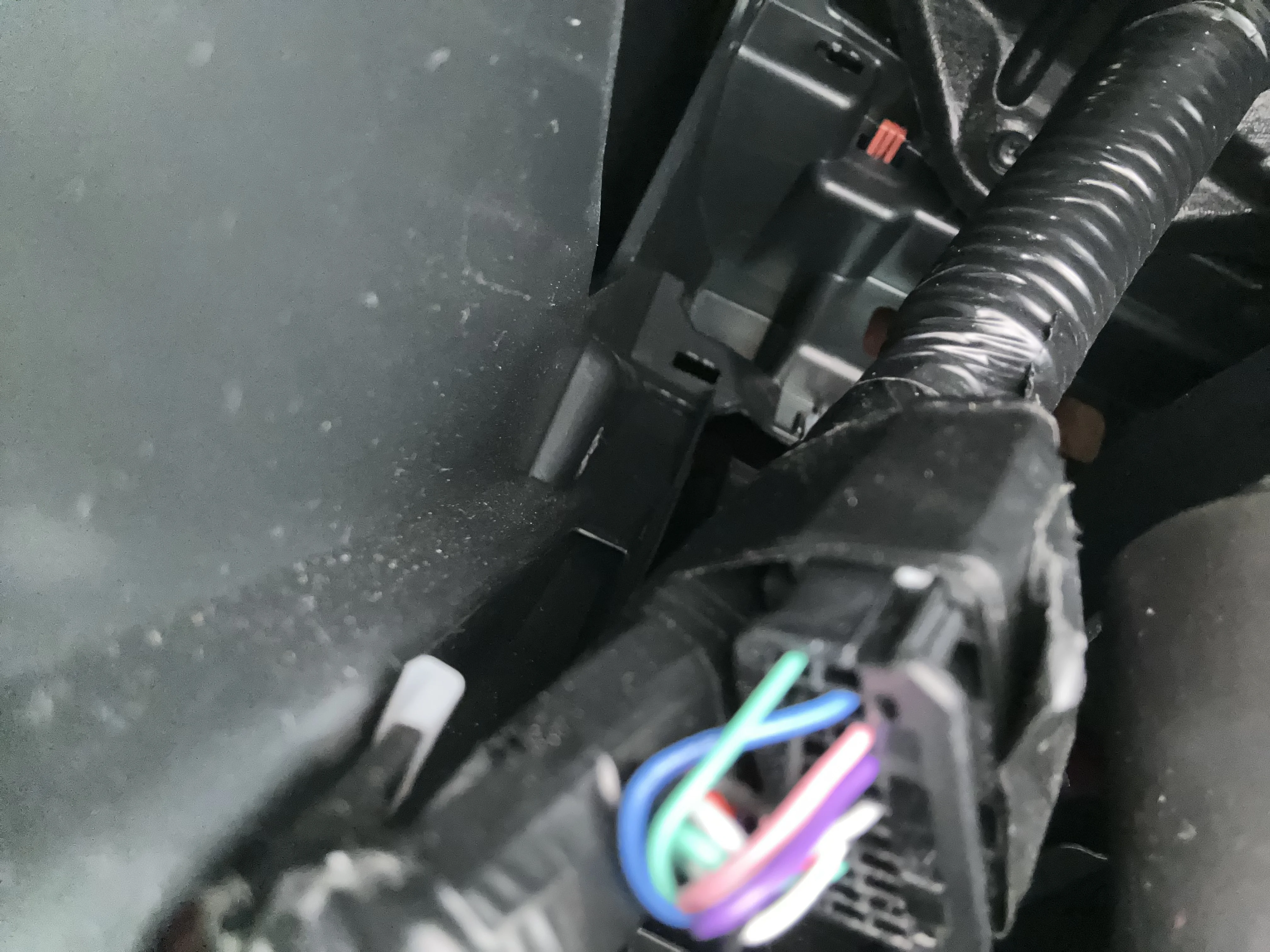

I have used Toyota 82998-24300 repair crimp to tap into the power connector that is near the glove box. And created a ground by bolting a ring terminal to the frame behind the dash panel. I can share the gvret csv format logs later if you want but they have gotten quite large.


Attachments

  • IMG_2996.webp
  • IMG_2871.webp
bahamutkotd said:
I have used Toyota 82998-24300 repair crimp to tap into the power connector that is near the glove box. And created a ground by bolting a ring terminal to the frame behind the dash panel. I can share the gvret csv format logs later if you want but they have gotten quite large.
Click to expand...

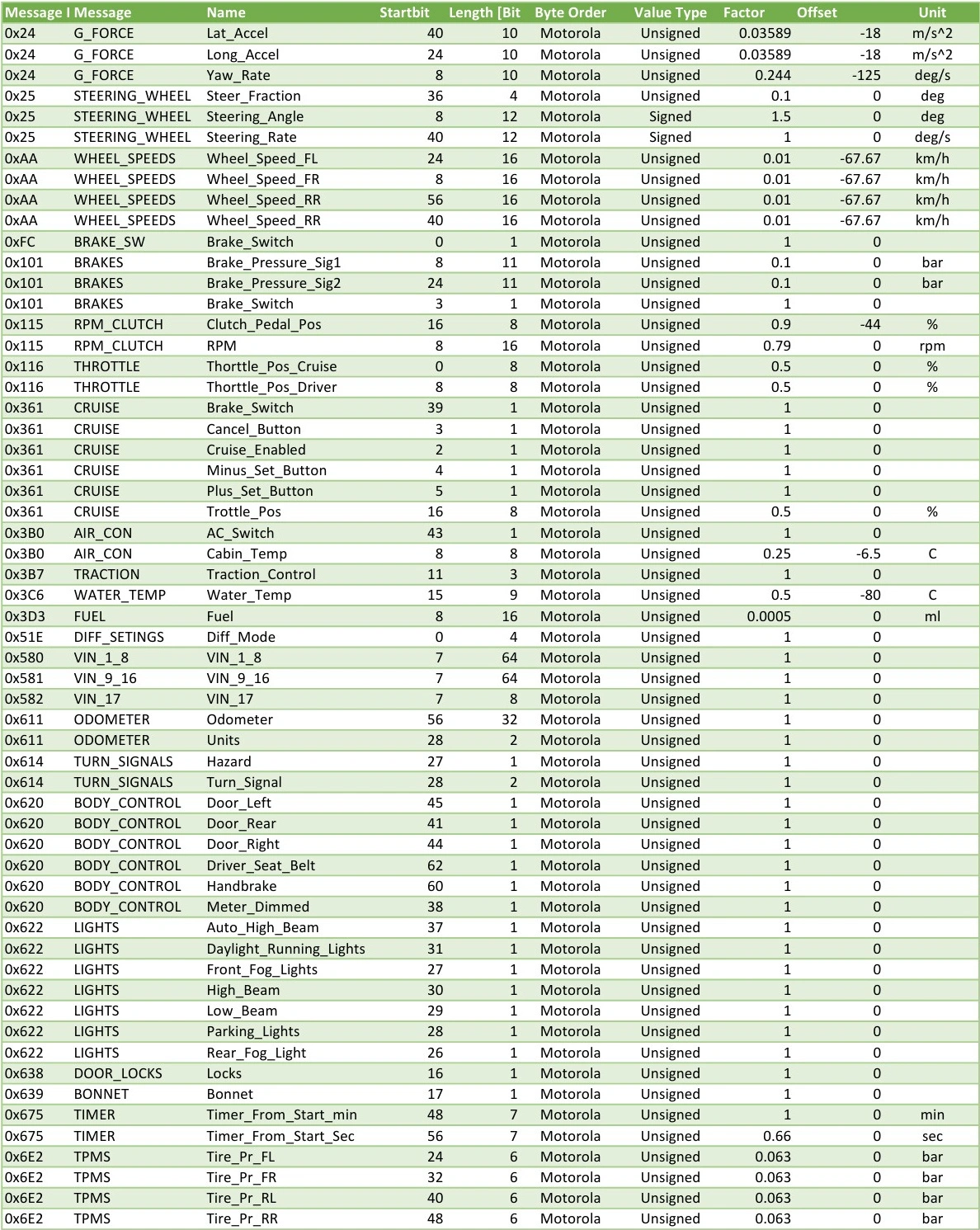

Would you be willing to share either your DBC file, SavvyCAN project, or GVRET logs? I’m building an ESP32-S3 based CAN display for my GR Yaris and would love to avoid duplicating the reverse engineering work.

Hi. Has anyone managed to log engine data such as boost pressure/oil press/oil temp via the canbus into the AIM Solo DL2?

It seems AIM has release documentation on the protocol it’s supported but it seems to be limited.


I’m also wondering am i able to use the h62 plug and connect it to the AIM instead of using AIM’s method of splicing wires. Not quite sure which can module that is connected to.

I'm looking into can logging trying to see if i can control the rad cooling fan, i've got techstream hooked up via openport2 odb and can control the fan speed through that, i've got canbus logging enabled inline when running this to try and replicate the commands. If someone can dm me a dbc that would help alot with this and some other bits i'm experimenting with.

bradliam1 said:
I'm looking into can logging trying to see if i can control the rad cooling fan, i've got techstream hooked up via openport2 odb and can control the fan speed through that, i've got canbus logging enabled inline when running this to try and replicate the commands. If someone can dm me a dbc that would help alot with this and some other bits i'm experimenting with.
Click to expand...
You don't need dbc to control the radiator fan as dbc does not carry UDS commands ;)

bradliam1 said:
I'm looking into can logging trying to see if i can control the rad cooling fan, i've got techstream hooked up via openport2 odb and can control the fan speed through that, i've got canbus logging enabled inline when running this to try and replicate the commands. If someone can dm me a dbc that would help alot with this and some other bits i'm experimenting with.
Click to expand...
If you're using an Android phone and have a decent OBD adapter, you can try this:
tonic

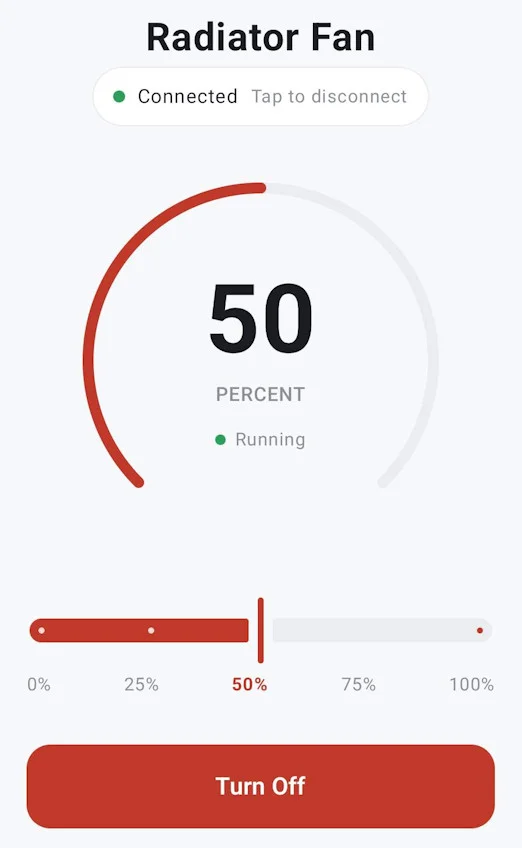

GR Yaris Thread 'Engine Radiator Fan Control Android App'

Small gift for the community: Download APK
Tested it with the OBDLink LX BT adapter and it works flawlessly every time.
The cheap Chinese adapters struggled a lot.
