GR86 Tuning Developments Turbo Kit - Available Now!

Will300

Will300

Totally Hooked
Apr 8, 2022
391
981
128
Staffordshire
The Tuning Developments turbo kit, is available to buy now, with prices starting from £6,995.00.
www.tuningdevelopments.uk

Turbo Kit Upgrade Conversion Package for Toyota GR86 ZN8 / Subaru BRZ GEN 2 ZC8 FA24 2022-on Models - Tuning Developments Ltd

Tuning Developments Turbo Kit for Toyota GR86 and Gen 2 Subaru BRZ. A true drive in, drive out service. With the vast success of our GT86/BRZ turbo kit conversion package, the GR86 was inevitable for us here at Tuning Developments to get involved with. Having spent time developing and fine...
www.tuningdevelopments.uk

The stage 1 base package running at 5psi of boost increases the power output to over 340HP and 300LB FT of torque.

The kit includes:

Stainless Steel Exhaust Manifold (Equal or Unequal Length)
Stainelss Steel Uppipe With External Wastegate Takeoff
Stainless Steel 3 Inch Downpipe
Precision CEA Billet Turbocharger
TiAL MVR External Wastegate
Screamer Pipe (This can be routed to atmosphere or back into the exhaust)
Aluminium Intercooler Core
Stainless Steel Intercooler Pipework
Silicone Joiner Hoses For Intercooler Pipework
Oil Feed & Return Lines For The Turbo
Modified Sump Pan To Accept Oil Return
Injector Dynamics Port Injector Set
Sytec Uprated Fuel Pump Kit
Omni Power Upgraded Map Sensor
Turbo Blanket
Heatwrap For Downpipe
Gaskets
Vacuum Hose
Nuts
Bolts
Full Installation Of All Items At Our Workshop
Engine Oil & Filter Change
ECUTeK License
Remap Session via ECUTeK On The Dyno Including Printouts (For those interested in “before” figures, please ask)
ECUTeK “Racerom”

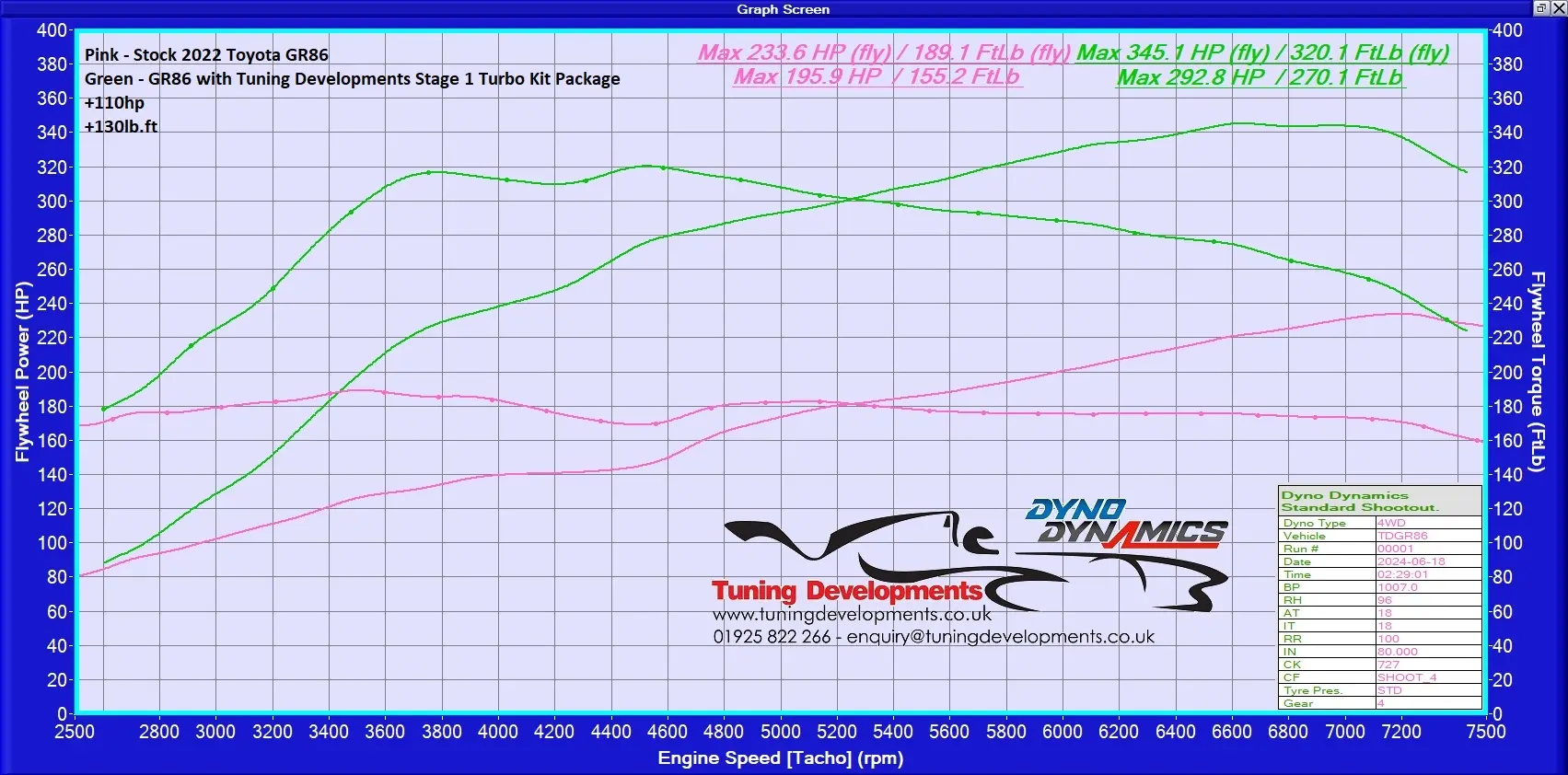

Stage 1 kit vs Stock GR86

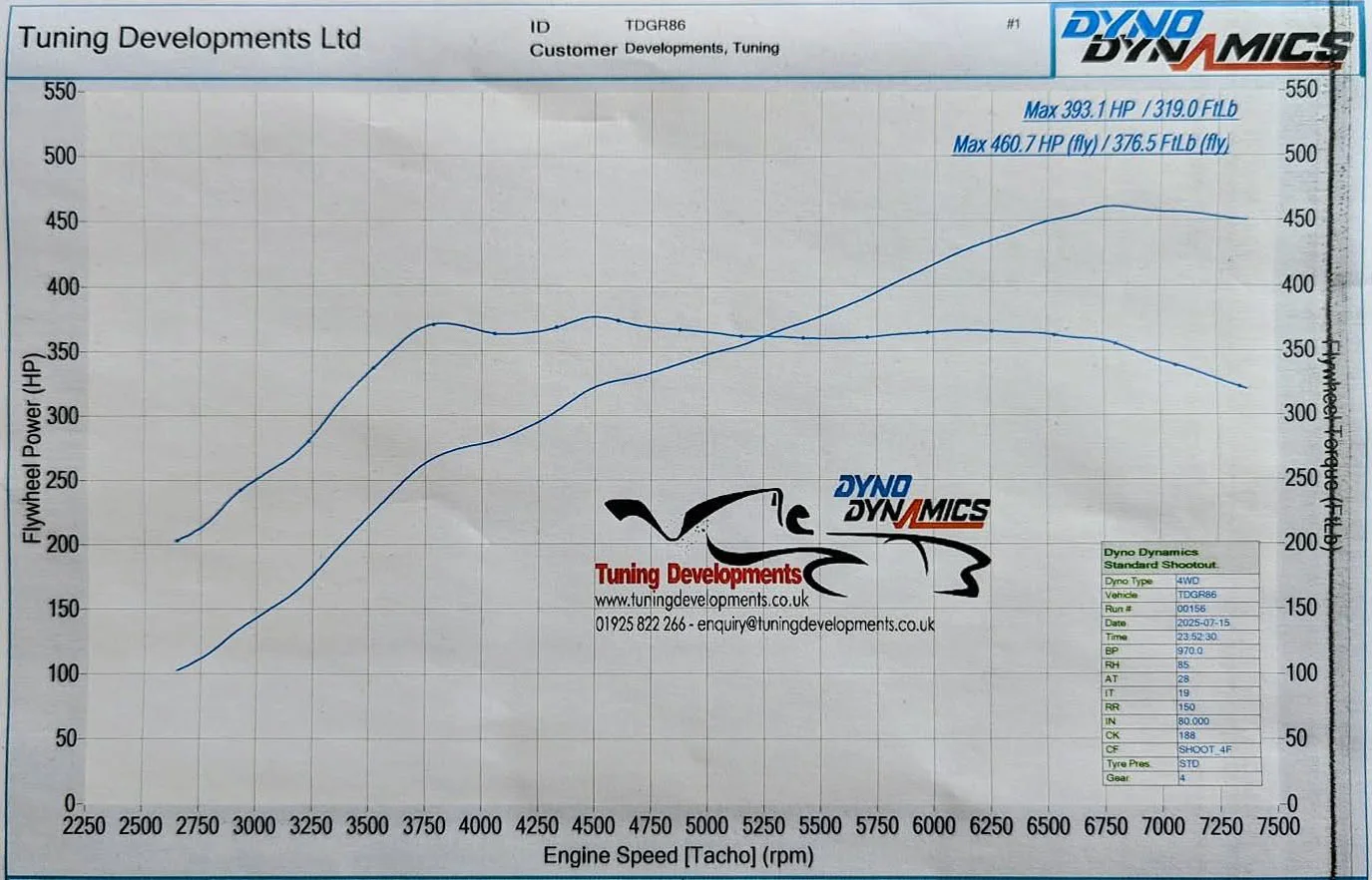

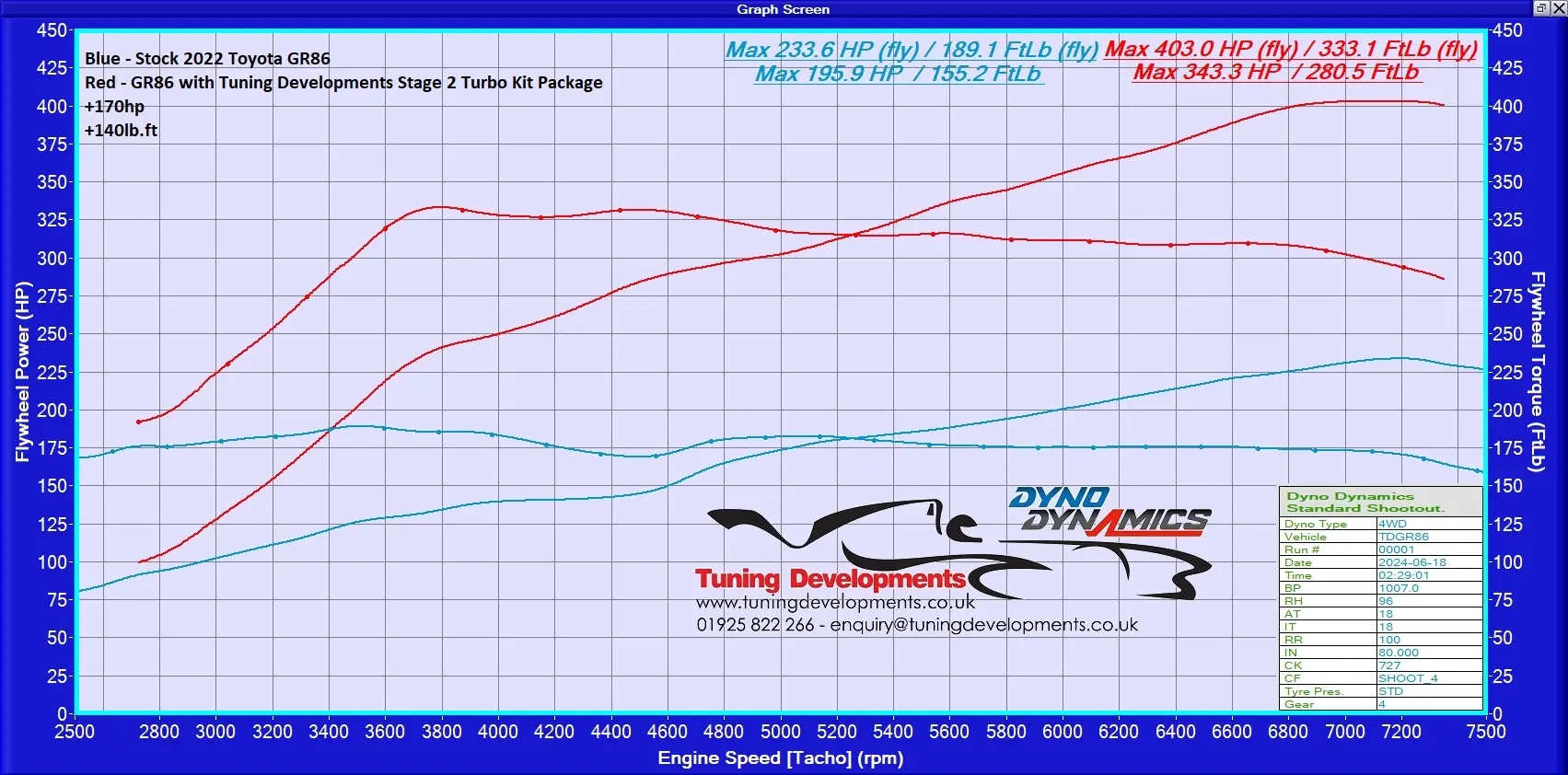

Stage 2 - will be available soon, this increases the power upto 400HP:


  • Like
Reactions: Michael Knight and Stonehorsw
Wow, You're on the ball. I was looking at the website last night and it was still not uploaded. No doubt I'll be getting an email or phone call from Mike soon asking if I want to book in to upgrade my N/A package.

  • Like
Reactions: Will300
It certainly looks interesting. My only concern is the wording lower down the page that states "Please note, this product removes at least one of the catalytic converters and therefore we must advise is for off-road use only". Does that pertain to both Stage 1 and Stage 2 kits do you think?

Sonic said:
It certainly looks interesting. My only concern is the wording lower down the page that states "Please note, this product removes at least one of the catalytic converters and therefore we must advise is for off-road use only". Does that pertain to both Stage 1 and Stage 2 kits do you think?
Click to expand...
Yes it'll remove the catalytic converter on both the Stage 1 and Stage 2 packages, even their N/A package states the same.
This will apply to 95% of all turbo kits on the market and the majority of N/A packages. Fensport also apply that disclaimer on their AVO and HKS turbo kits, along with their N/A kits.

If you want to retain the catalytic converters whilst adding power, a supercharger is the way to go.

  • Like
Reactions: ZN8 and Sonic
Is anyone thinking of going FI on their car? Given that a turbo is available both here, and at Fensport, it appears the wait is now over for anyone seriously considering it.

Personally I'd really like jump straight in, and I could release money to have it done, but my first child is due this weekend, so I'm trying to do the responsible thing and wait...

Kids do like choo-choo noises though.

  • Like
Reactions: Chris Mc
I can't see any of the turbo kits being a viable option for most owners here as they aren't road legal. Superchargers are the way to go.

ZN8 said:
I can't see any of the turbo kits being a viable option for most owners here as they aren't road legal. Superchargers are the way to go.
Click to expand...
It is a concern for me as well, however there are options for mid pipes that should get through an emissions test. But it needs to be considered of as part of the cost if the car is to pass an MOT.

If every single MOT test was carried out to the letter of the law then no cars with sports Cats or EGR blanks would ever pass, yet they have been passing MOTs for years, usually so long as they pass the emissions test it'll pass.

It would be a lot easier if a suitable front pipe was offered as part of the kit.

Fensport do the AVO pipe which has a 5 inch diameter cat, which would be great for flow, but this is only 160 cell count IIRC. not sure this would be enough on its own.

From my research of Gen 1 cars, the Berk front pipe (2.5 inch with 200 cell high flow cat) is the one that people claim passed the MOT reliably. Berk had a similar reputation when I was in the 350Z community so that makes sense to me.

It's over 400 quid though.

Other options are getting a custom front pipe made, which could include a GPF as well, but the resulting front pipe would probably cost over a grand.

I didn't realise this but despite the car being fitted with a GPF, particulates aren't measured for petrol engines in an MOT. In theory you could just get away with a catted front pipe. The GPF needs to be visibly present for an MOT, which the cat could easily be mistaken for. Obviously still not legal but it would pass on those grounds.

ZN8 said:
I didn't realise this but despite the car being fitted with a GPF, particulates aren't measured for petrol engines in an MOT. In theory you could just get away with a catted front pipe. The GPF needs to be visibly present for an MOT, which the cat could easily be mistaken for. Obviously still not legal but it would pass on those grounds.
Click to expand...
Yeah, that's basically what I was eluding to. I actually read the emissions part of the MOT criteria yesterday, and it seems that every petrol car in the past few decades has the same criteria to meet. I thought it might have changed for newer cars which had to meet newer euro regs, but apparently not.

I guess someone that doesn't mind doing it could put a US spec, or a gen 1 front pipe in for testing times. I'd rather have a fit and forget solution though.

Sounds like you did what I did. I thought with it being Euro 6 it's gets more stringent, but apparently not! US spec front pipe would be a good call.

No they are the same as far as I'm aware, it's just European cars with the GPF. I only said US as thats all that came to mind.

  • Like
Reactions: Grblue86
My car will be due it's second service soon. Very tempted to get this done at the same time.

I have the funds available. It's just a case of talking myself in / out of it. HELP! :eek: I think the time of year has a lot to do with my hesitation.

Regarding getting it through an MOT in a years time, the best option I can see is to get a used gen1 front pipe for MOT time.

Last edited:
  • Like
Reactions: La3195
GRistopher said:
My car will be due it's second service soon. Very tempted to get this done at the same time.

I have the funds available. It's just a case of talking myself in / out of it. HELP! :eek: I think the time of year has a lot to do with my hesitation.

Regarding getting it through an MOT in a years time, the best option I can see is to get a used gen1 front pipe for MOT time.
Click to expand...

You have my blessing to proceed.

Why a gen 1 front pipe? Dont forget our front pipes have a couple of pressure sensor pipes which the Gen 1's don't have.
