GR86 Interior reading lights

C

Celia73

New member
Sep 11, 2023
7
8
3

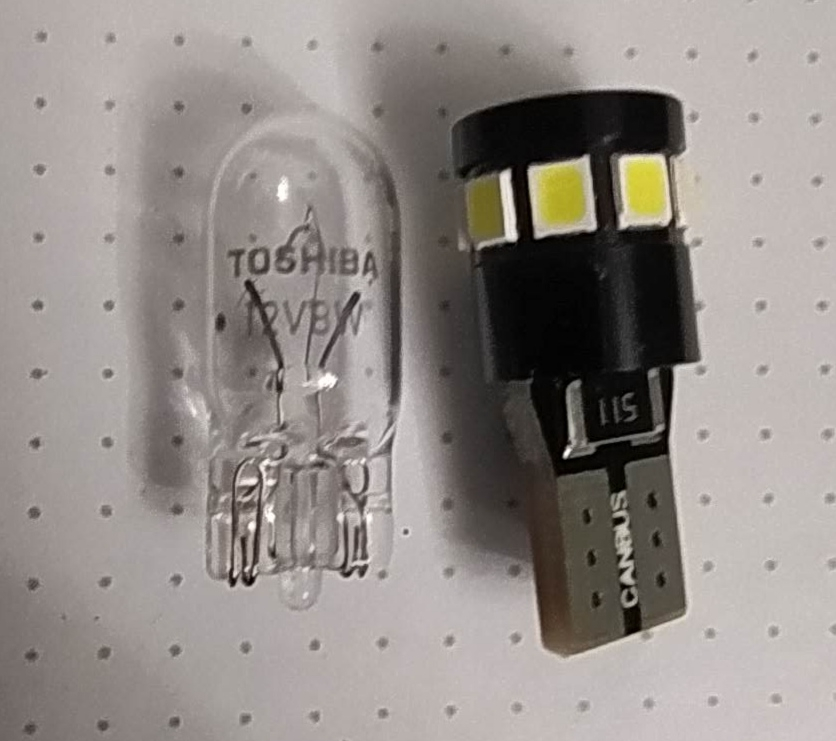

I'm sure a lot of us have done this already but as it's my first mod I thought I'd post it up. I changed the interior light bulb for the one below. It's an easy job, just pry the plastic cover off with a mobile phone tool (insert on the windshield side) or small trim tool.
Much brighter, maybe too bright! Also did the boot light at the same time.




  • Like
Reactions: GrateySix, sentra, AWB and 1 other person
K

kacpr

Dedicated member
Apr 19, 2022
136
152
43
Northamptonshire
Celia73 said:
I'm sure a lot of us have done this already but as it's my first mod I thought I'd post it up. I changed the interior light bulb for the one below. It's an easy job, just pry the plastic cover off with a mobile phone tool (insert on the windshield side) or small trim tool.
Much brighter, maybe too bright! Also did the boot light at the same time.

View attachment 20327

Click to expand...
Hey Celia, can you confirm if the original bulbs are LED?

beorg

beorg

Zookeeper
Staff member
Apr 12, 2022
580
994
128
Essex
Cholmondeley-Biscuitt said:

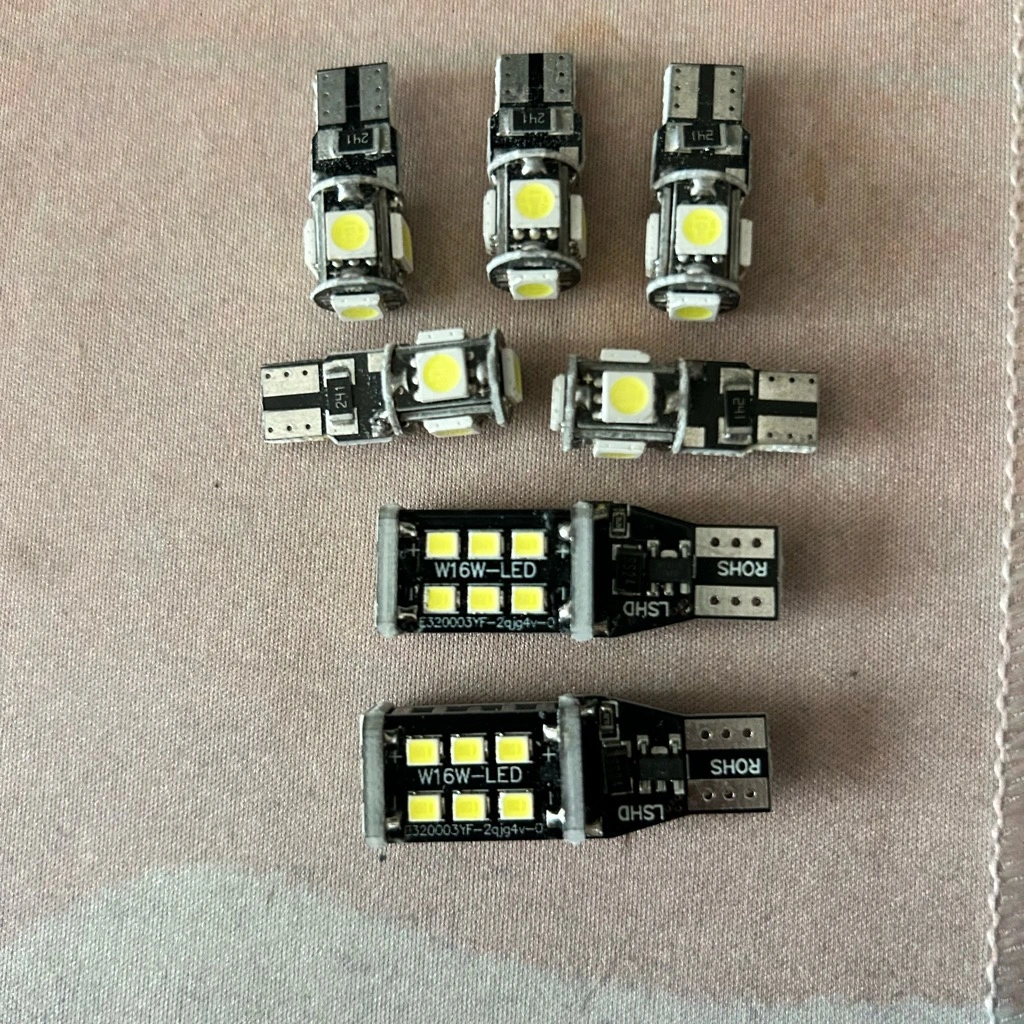

I’ve got a bag of 7 LED replacements from AliExpress (see image). I’m assuming that the bigger ones are for the reverse lights and the other 5 are for various interior lights?
View attachment 22270
Click to expand...
Yes, the two larger LEDs are for the reverse lights.

The remaining 5 will go in the boot (1x light), dome lights and the door puddle lights.

You can also change the sun visor vanity lights but they use a different type of bulbs.

Here's the previous thread on it - https://www.gr-zoo.com/threads/replacement-led-bulbs-where-did-you-buy-them-from-what-type.3046/

  • Like
Reactions: ZN8 and Sonic
beorg

beorg

Zookeeper
Staff member
Apr 12, 2022
580
994
128
Essex
Cholmondeley-Biscuitt said:
These are the ones I bought. At a little over £3 I dunno how long they'll last. If they blow I'll buy a 'proper' set ... Now, thanks to @beorg, I've just ordered the GR projecting puddle lights too ;)
Click to expand...
I should have updated that thread after receiving the lights (I could have sworn I had...).

The AliExpress projector puddle lights were unfortunately incompatible with the GR86. They are different to those in a GT86, which I think the shop linked in that thread is selling.

This is the type of projector lights that I believe are compatible with the GR86:


Conscript

Conscript

Totally Hooked
Apr 20, 2022
1,672
3,280
353
Kent, UK
Funnily enough I've just ordered some door projectors after someone posted a link on Facebook: https://myledlogo.com/collections/toyota-led-logo

When you select Buy Now, you get to choose which design you want and also which model (GT or GR86). Mine were dispatched yesterday, so hopefully be here within the next couple of weeks. I'll report back if they're any good.

I'd previously ordered some on AliExpress for 10 quid or so, but realised when they arrived that they were for the GT. Luckily they also had one of the capacitors hanging off, so I was able to request a refund due to them arriving damaged.

  • Like
Reactions: Gazoo86 and beorg
Conscript

Conscript

Totally Hooked
Apr 20, 2022
1,672
3,280
353
Kent, UK
Conscript said:
Funnily enough I've just ordered some door projectors after someone posted a link on Facebook: https://myledlogo.com/collections/toyota-led-logo

When you select Buy Now, you get to choose which design you want and also which model (GT or GR86). Mine were dispatched yesterday, so hopefully be here within the next couple of weeks. I'll report back if they're any good.

I'd previously ordered some on AliExpress for 10 quid or so, but realised when they arrived that they were for the GT. Luckily they also had one of the capacitors hanging off, so I was able to request a refund due to them arriving damaged.
Click to expand...

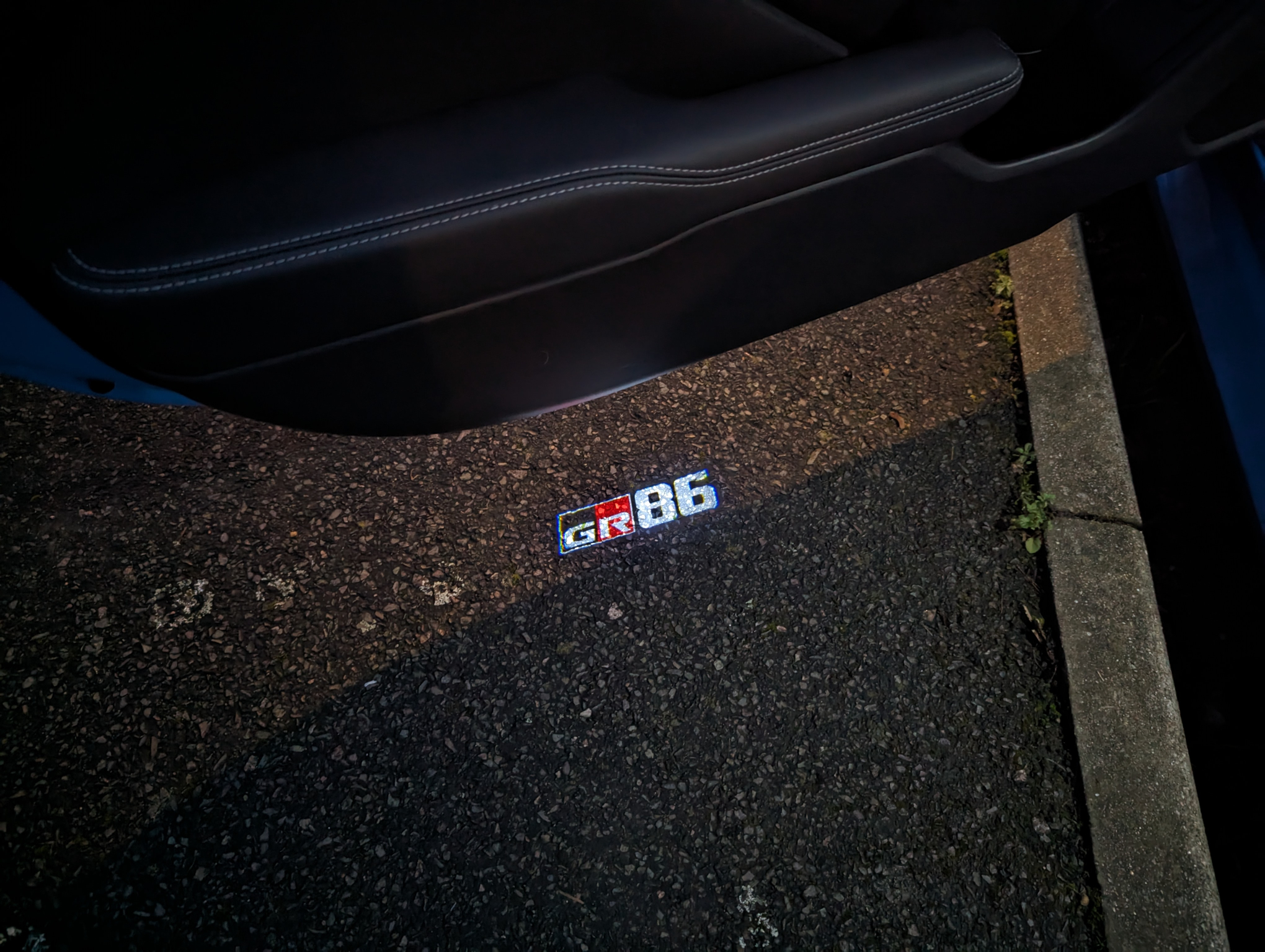

Arrived today. Not too bad.


Attachments

  • Like
Reactions: beorg, sim86 and ZN8
ZN8

ZN8

Zookeeper
Staff member
Dec 29, 2021
1,255
2,298
288
Kent
I'm impressed how clear those are, might have to get some for xmas.

Conscript

Conscript

Totally Hooked
Apr 20, 2022
1,672
3,280
353
Kent, UK
ZN8 said:
I'm impressed how clear those are, might have to get some for xmas.
Click to expand...
Indeed, I must admit I raised an eyebrow when I opened it up and saw the Engrish tag line on the box ("Open special is different"...eh?). But they are quite solidly made, they clipped into position as snugly as the old lights (I'd seen some people review AliExpress ones and say they didn't fit quite right) and the image is nice and crisp.

Conscript

Conscript

Totally Hooked
Apr 20, 2022
1,672
3,280
353
Kent, UK
I did think they were perhaps a little small...but then realised that it was because the door was opened over the pavement :/ They look much bigger on flat ground.


  • Like
Reactions: Mute101
Conscript

Conscript

Totally Hooked
Apr 20, 2022
1,672
3,280
353
Kent, UK
Recent chat in the Confessions thread reminded me that I'd always intended to look up some warmer LED bulbs/lamps for the cabin lights. The ones I got from Amazon were nice and bright, but a bit too harsh and white. Said chat reminded me, and yesterday I ordered some from ClassicCarLEDs.co.uk. Pictures taken with a camera so aren't brilliant but should hopefully be a good comparison.

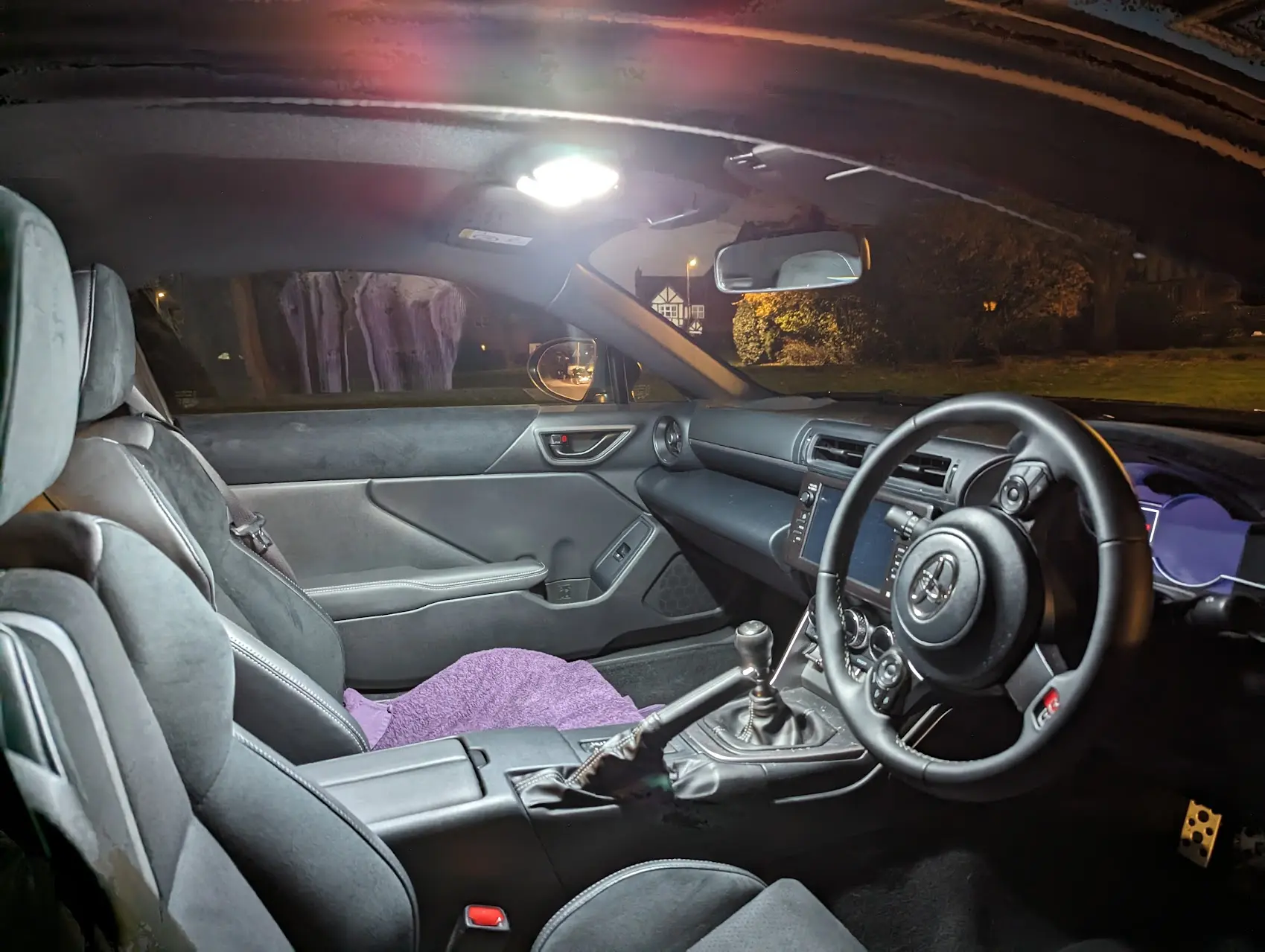

Before (Amazon 6000K )


After (ClassicCarLed.co.uk 3000K)


They are probably not quite as bright as the whiter ones (although maybe that's due to the colour temp) but I find a warmer colour temperature much better for a cabin interior. I think they are still much brighter than the OEM incandescent bulbs. If I've got them around, maybe I should pop those back in just to confirm, but they probably went in the bin.

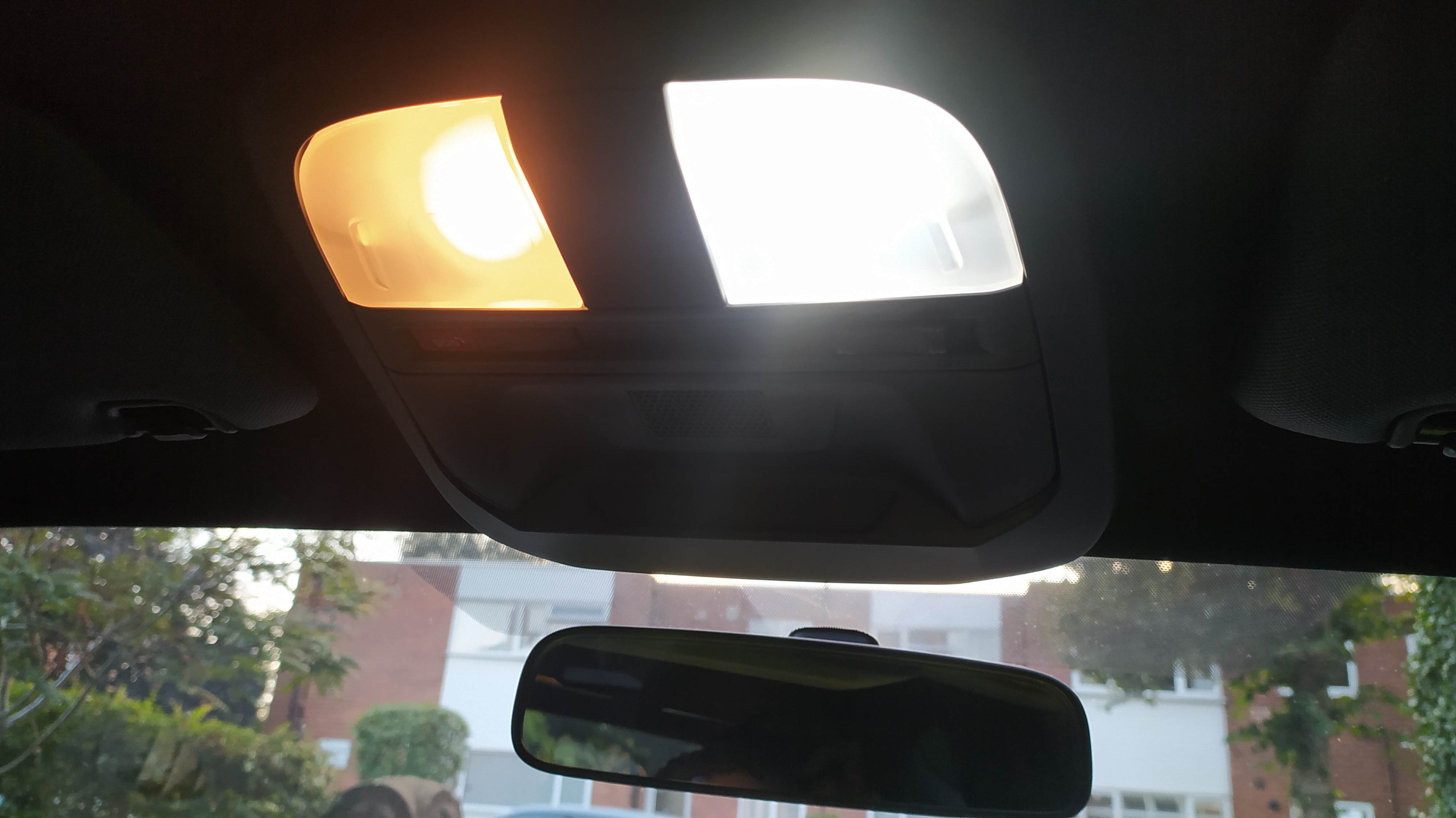

Direct comparison between between the two LEDs mid - fitting:

  • Like
Reactions: JonBon, beorg, Jianlun and 3 others
Vistalite

Vistalite

Dedicated member
Sep 7, 2023
135
179
43
Centre of the Universe (Warwickshire!)
Conscript said:
Recent chat in the Confessions thread reminded me that I'd always intended to look up some warmer LED bulbs/lamps for the cabin lights. The ones I got from Amazon were nice and bright, but a bit too harsh and white. Said chat reminded me, and yesterday I ordered some from ClassicCarLEDs.co.uk. Pictures taken with a camera so aren't brilliant but should hopefully be a good comparison.

Before (Amazon 6000K )
View attachment 22534

After (ClassicCarLed.co.uk 3000K)
View attachment 22535

They are probably not quite as bright as the whiter ones (although maybe that's due to the colour temp) but I find a warmer colour temperature much better for a cabin interior. I think they are still much brighter than the OEM incandescent bulbs. If I've got them around, maybe I should pop those back in just to confirm, but they probably went in the bin.

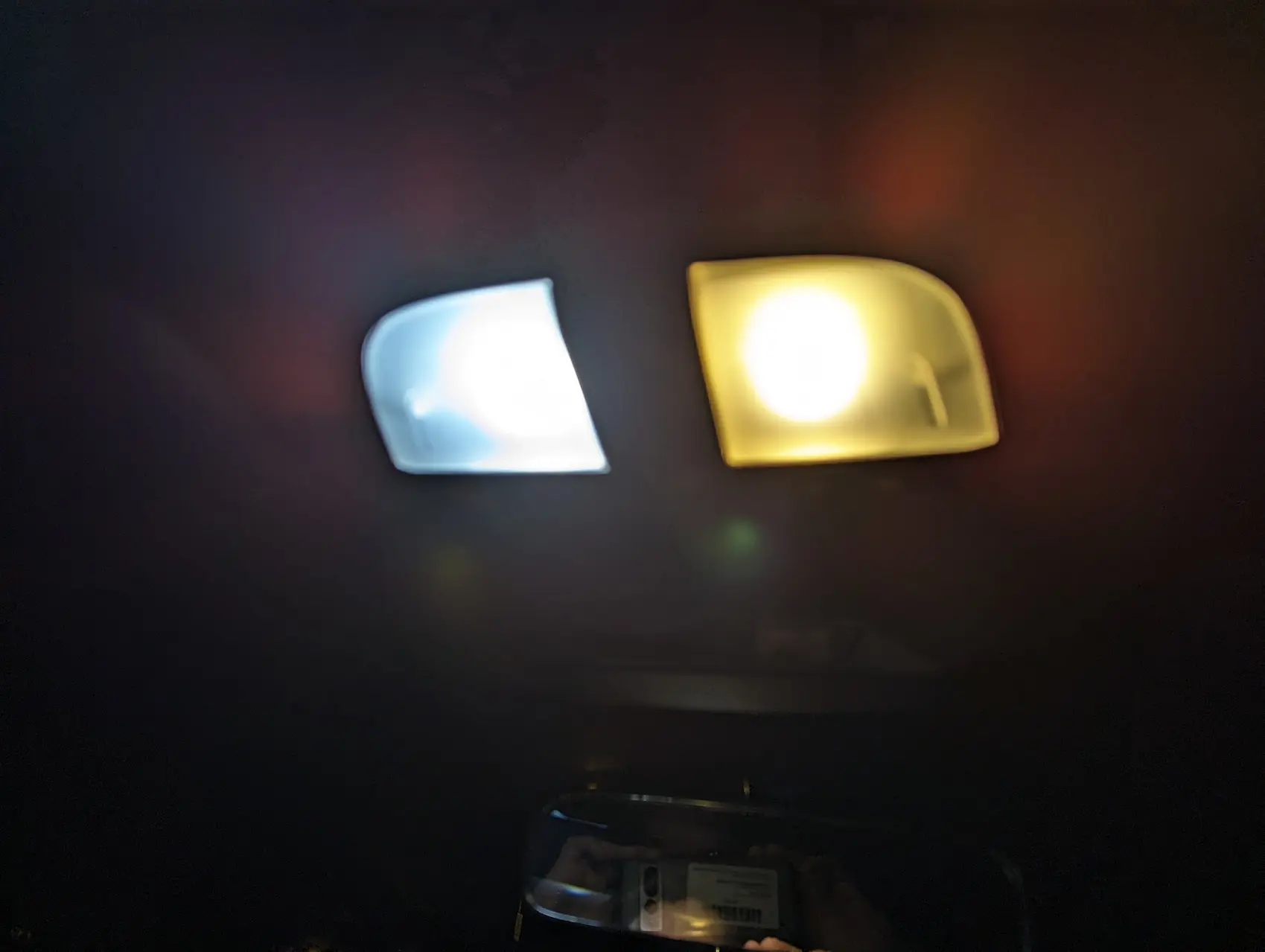

Direct comparison between between the two LEDs mid - fitting:
View attachment 22536
Click to expand...

Thanks for the comparison and I agree, that the 3000 kelvin lamps are much more suitable for creating an old skool ambience.

  • Like
Reactions: ZN8
Conscript

Conscript

Totally Hooked
Apr 20, 2022
1,672
3,280
353
Kent, UK
I have 4 of these bulbs spare if anyone wants them. Any order over £10 qualified for free next day delivery, so I picked up 6 rather than just the two I needed. They worked out about £2.74 each that way, so if anyone wants a pair for £6 to cover the cost of a large letter stamp, I'm happy to stick them in the post.

EDIT: someone's already snapped up a pair, still one more pair left.

Last edited:
