Hi,

I've create a facebook group to share informations, upgrade about CANchecked for Yaris GR.
I'm not seller or CANchecked employee, just an user

Log in to Facebook

Log in to Facebook to start sharing and connecting with your friends, family and people you know.

www.facebook.com

you are welcome to come to share your CANchecked if you have it, to have news or just for curiosity



[Brasso]

Hi,

I've create a facebook group to share informations, upgrade about CANchecked for Yaris GR.
I'm not seller or CANchecked employee, just an user

Log in to Facebook

Log in to Facebook to start sharing and connecting with your friends, family and people you know.

www.facebook.com

you are welcome to come to share your CANchecked if you have it, to have news or just for curiosity

Share your feedback on a thread here, quite a few of our users aren’t on Facebook, and it’s easier to search for things here.



[Greenthumb]

Yep. Cancheked Yes, Facebook No.



[Duke]

Share your feedback on a thread here, quite a few of our users aren’t on Facebook, and it’s easier to search for things here.

This x 100



[Coastliner]

Hi,

I've create a facebook group to share informations, upgrade about CANchecked for Yaris GR.
I'm not seller or CANchecked employee, just an user

Log in to Facebook

Log in to Facebook to start sharing and connecting with your friends, family and people you know.

www.facebook.com

you are welcome to come to share your CANchecked if you have it, to have news or just for curiosity

Don't do Facebook.



[TillyFTW]

Removed this from the car again & updated the displays today

Stole the loading screen from facebook

Added a GR logo to the boost and rev counter displays using paint.net skills



[Brasso]

I've just ordered one so hopefully delivered later this week.



[FrakassoR]

Share your feedback on a thread here, quite a few of our users aren’t on Facebook, and it’s easier to search for things here.

Ok right.

If canchecked's users are present here, i'll can share informations on fb and here



[Greenthumb]

Yes



[FrakassoR]

for optimal use of CANchecked, it is necessary to use their DSS software :

Display Verbindung herstellen > Displays für Motormanagements

1. Die DSS zunächst starten: 2. Produkt auswählen (aktuell nur MFD28, MFD32, MFD32S und MFA28 – Gen1 links und Gen2 rechts) 3. Verbindung herstellen – oben auf „Connection“ und den seriellen Anschluss bzw „Com Port“ auswählen. Wenn dieser nicht erscheint bitte den Treiber installieren oder die...

www.canchecked.de

this allows you to change the screens, displays, settings... from your computer, which is easier than doing it directly from the box

A presentation's video of CANchecked made by Phil :


Instruction's manuel for Yaris GR :

https://www.canchecked.de/wp-content/uploads/Installation-instruction-Toyota-GR-Yaris.pdf?fbclid=IwAR0hKrCVkqqsQkPw_BBcAd41jBHHR7-X_Y6HRjxXdkNDyv_OS8FwEP9BceI



[FrakassoR]

you can change boot video easily with new pictures (bmp) and 20 to 26 pictures, 320x240 pixel

When you have create pictures, rename "logo00" to "logo25" (max) ("logo19" mini) and paste on SD card manualy (file "pic") or upload one by one with DSS software.
After upload new pictures, it is necessary to flash inernal memory of CANchecked and reboot product (first reboot after flash is slow)



and reboot product (first reboot after flash is slow)




example of start boot :



[FrakassoR]

you can upgrade your product with a shiftlight :

SLM08 - Shift Light Module / Schaltblitz > Displays für Motormanagements

Der Schaltblitz ist die beste Möglichkeit,um den Fahrer über den optimalen Schaltzeitpunkt zu informieren.8 superhelle LEDs sind individuell konfigurierbar.

www.canchecked.de

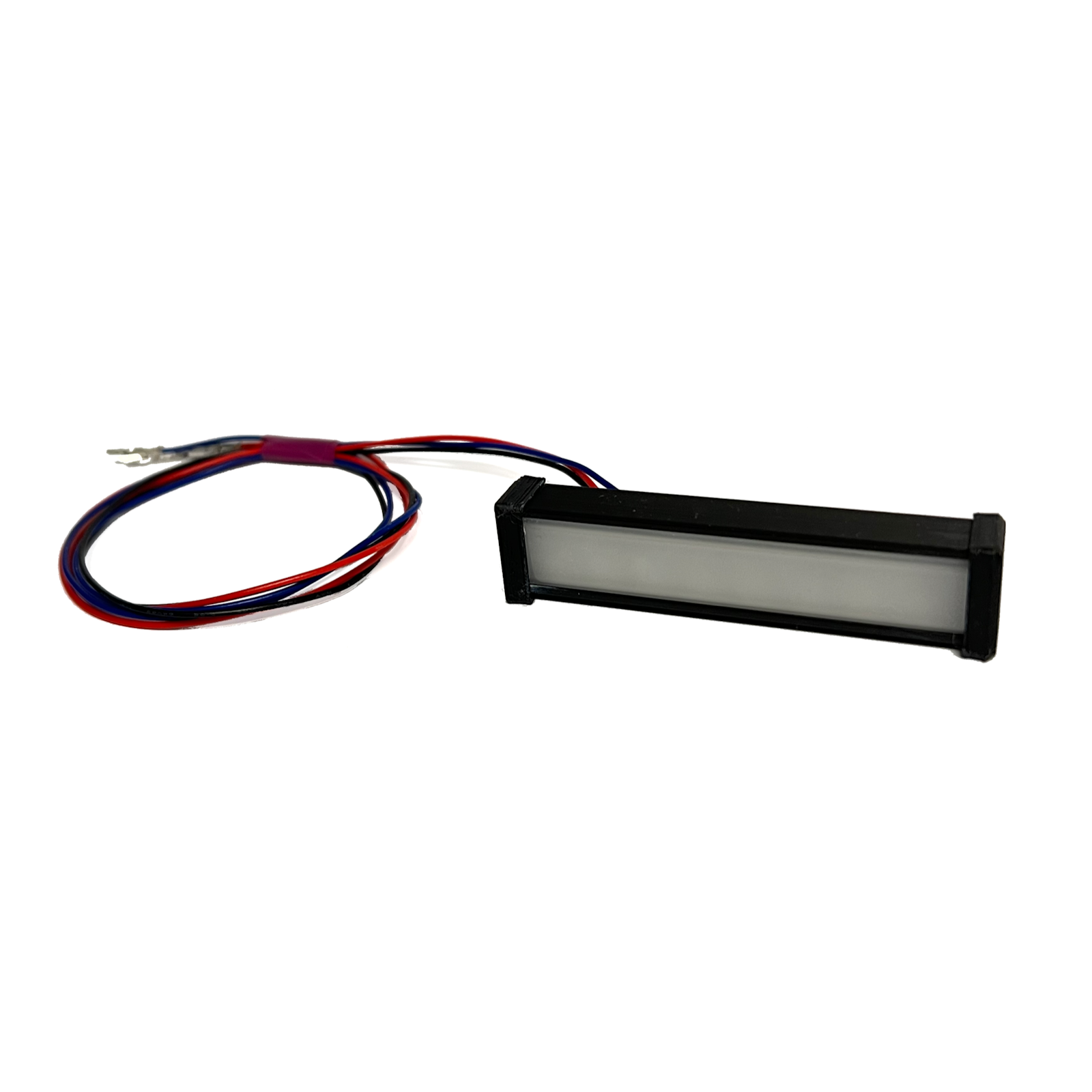

CANchecked universal shift light plug-in module for MFD32 / MFD28, 49

In order to reach the optimal shift point this CANchecked universal shift light is indispensable

www.turbozentrum.de

and configure it from DSS software.



[Brasso]

So how do I add my graphics using the windows app? I can’t find any instructions that make sense.

I see you can copy things to the Sd card and then flash the unit? I’m a bit lost with what I need to do.



[FrakassoR]

you must be instal DSS software (link in this page).
After, you can connect your CANchacked to your computer with usb cable.
And upload files one by one (upload page)

OR

insert microSD card in your computer, and past pictures in "pics" file.
control the name of your pictures if it's to remplace oem pictures.


AFTER (DSS or direct SDCard)

Flashing your CANchecked (show video in this page) eand reboot module

enjoy !



[Tralien]

Thats next on my shopping list.
Anything special during installation?



[Brasso]

Thats next on my shopping list.
Anything special during installation?

Not really, find a suitable fuse, run wire and plug in. Air vents easy to remove with trim tools.



[Neonic]

I bought myself one of these modules, it's a nice product. I had a small problem with the supplied harness. After sales department is looking into what they can do. The company that sold me the module is in any case very responsive

I have some questions

- EGT doesn't display any data, is this the case for everyone?

- No dimmer when lights are on? Any way to activate/trigger that funcion? Light intensity is too strong at night

There is a lot of learning to be done from the DSS. I.e I'm trying to vary the angle and colour of the graphics according to the desired value, as the default settings are not always very relevant. It takes time, I haven't achieved the desired result yet



[Tralien]

Im short before buying one myself.....but dimming is the most important function. Pls report if it can be done via settings



[TheoRettisch]

Im short before buying one myself.....but dimming is the most important function. Pls report if it can be done via settings

I talked to the Canchecked Support about the dimming feature. They told me that you need two swipes to adjust the brightness in different levels. Not ideal but at least it is possible without to much work.

I also suggested to them that maybe it would be a good idea to monitor the headlights trough the CAN bus and automatically adjust the display brightness accordingly. If we are lucky this might be implemented in a future software update.



[TheoRettisch]

Just got some additional feedback. Unfortunately the OBD port does not provide any information about the headlights so they are not able to include the auto brightness feature into their firmware.
